Gas in bulk
Gas with periodic boundaries¶
Here we simulate a gas that is a collection of hard spheres with periodic boundary conditions.
main()
// 1) Creating and initializaing particle system
/*Parameters*/
int Number_of_particles = 256;
int Number_of_time_steps = 100000;
double omega = 0.0; //no intrinsic rotation
double phi = 0.1; // packing fraction
double L = sqrt(Number_of_particles / (phi)); // Dimension of periodic box
ParSim::ParticleSystem parsym(Number_of_particles, omega, L); // create a simple system
ParSim::Physics Physics;
ParSim::Particle *const particle =
parsym.get_particles(); // get access to particles
/*Setting physics parameters -- all game to be played here */
Physics.parameters[8] = 0.001; // time step
Physics.parameters[1] = 2.0; // interaction_diameter sigma
Physics.parameters[2] = 10.0; // mass
Physics.parameters[13] =
Physics.parameters[2] * (Physics.parameters[1]) *
(Physics.parameters[1]) / 8.0; // I = (1/8)m*(simga)^2
Physics.parameters[5] = 0.01; // gamma_t
Physics.WCA_parameters[0] = 1.0; // WCA epsilon
Physics.WCA_parameters[1] =
Physics.parameters[1]; // WCA sigma
Physics.NL_skin_depth =
2 * Physics.parameters[1]; // 2*simga, NL_skin_depth, DeltaR
Physics.NL_tau = 200; // NL_Tau, tau
//Set other parameters you would like..
//2) Main simulation loop--------------
for (int step = 0; step < Number_of_time_steps; step++) {
// i) writing data of this state to file (will can be used for rendering and analysis)
// write the data of this state to a file
// ii)Manipulate particle positions for next iteration.
Physics.evolve_system_ERM_NL(parsym, step);
}
The Evolver looks like this
evolve_system_ERM_NL(parsym, step)
void ParSim::Physics::evolve_system_ERM_NL(ParticleSystem &parsym, int step) {
// Update Neighbour list after every 200 steps
if (step == 0 || step % this->NL_tau == 0) {
Neighbours_search_PBC(parsym);
}
// i) Calculate force (F) from positions and velocities (x,v) --
Force_NL_PBC_WCA(parsym); // links forces on each object
// ii) Update x,v to x', v' ----
ERM_Integrator1_sys(parsym, step);
// iii) Again calculate force (F') from x',v' ------
Force_NL_PBC_WCA(parsym);
// iv) Update x',v' to xnew, vnew --------
ERM_Integrator2_sys(parsym, step);
}

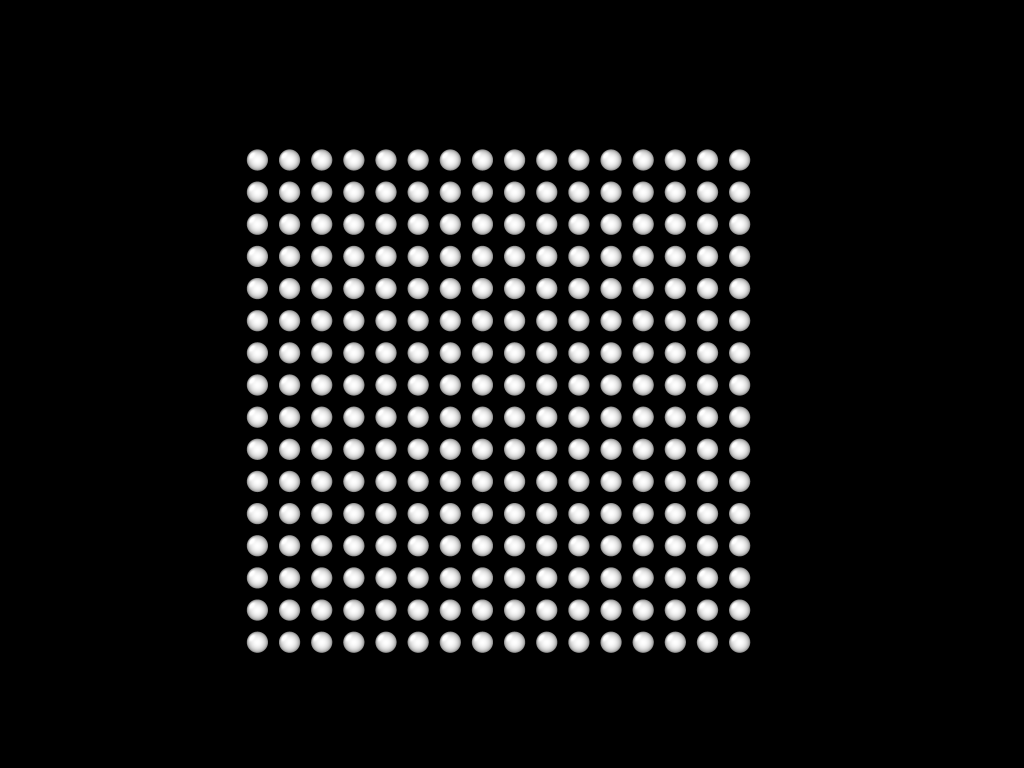

Output: (as rendered in Ovito)
